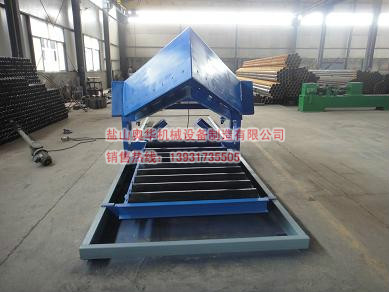

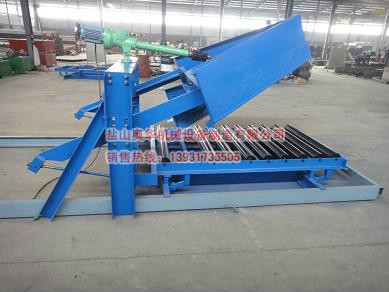

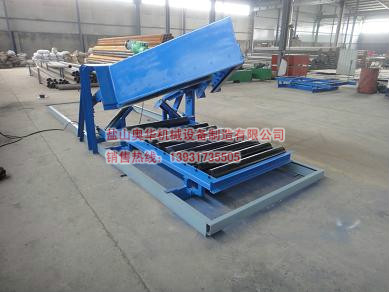

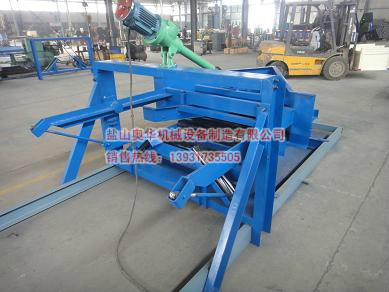

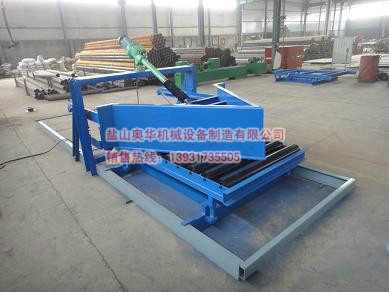

AHF series of variable-angle electric plow unloader is developed by our company's products, it is simple, compact and reliable. Rack structure and plow head control state into a triangular state, high strength, especially for high speed, large capacity of the conveyor. The main rotating force components are equipped with bearings, running smoothly, effort. Both local operation, but also remote control. Is ideal for belt conveyor unloading the middle of the equipment.

The working principle is:

1, the pusher retracts, pulls unloads the plow head to rise, the unloading plow head vice plow moves at the same time puts down the roller stand,

Degree in the normal section of the conveyor roller in the same height, adjusting angle roller into the groove shape, with the conveyor normal section

The same groove, tape normal operation.

2, putting out, put down the discharge plow head, unloading plow head plow handle at the same time pull up the roller frame. The height of the roller reaches the theoretical height of the conveyor, the belt and the angle adjusting roller are flattened, the discharging plow head contacts with the adhesive tape, and the conveyor completes the discharging.

Its characteristics are:

1, Putter direct control of unloading plow head, accurate positioning.

2, unloading plow head and frame through the bearing connection, smooth landing, effort.

3, roller roller landing gear power transmission from the plow, with the discharge of the plow head with more coordinated and accurate.

4, unloader Plowshaft and roller frame movements can be leveraging each other, when the roller frame uprising by the discharge of the plow head

The part of the drop weight is offset by the falling weight of the roller carrier. therefore

Can effectively reduce the burden putter, extended life.

5, the dump head plow head height can be independently adjusted, so that the plow head adjustment more convenient and reliable.

6, the whole device installed in the middle of the conveyor frame, you can install welding, you can also use bolts fixed installation. Ann

Installation, commissioning is very convenient and fast.

7, plow head and roller frame up and down position control, repeat accurate.

8, unloader Coulter can be replaced, thus saving the cost of use. Coulter design has rubber plow, polyurethane plow

Knife and composite high wear-resistant steel plow. Users can choose according to need.

The electric plow unloader of the structure can be adapted to one side and two side unloaders. Can be designed according to user requirements non-standard form of discharge.

The structure of the unloader for the company's patented product, patent number: ZL 2012 2 0490221.8
